40bar high-pressure water-lubrication oil free screw compressor
Products
Brochure Download
| Title | Download |
| 40bar high-pressure water-lubrication oil free screw compressor |
|
40-bar high pressure Water-injected oil free screw compressor Special For PET Bottle Blowing Machines
Capacities from 5.0 to 40.0m 3/min
Pressures from 25 - 40 bar(g)

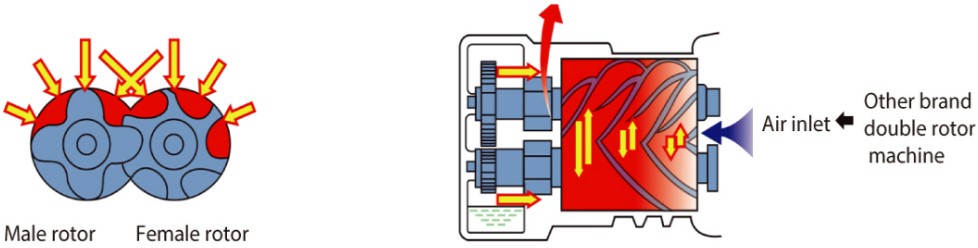

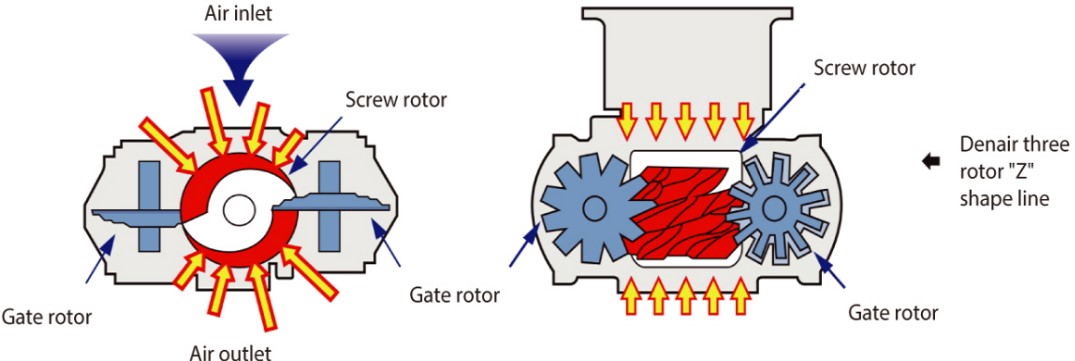

Interpretation of a complete mechanical balance

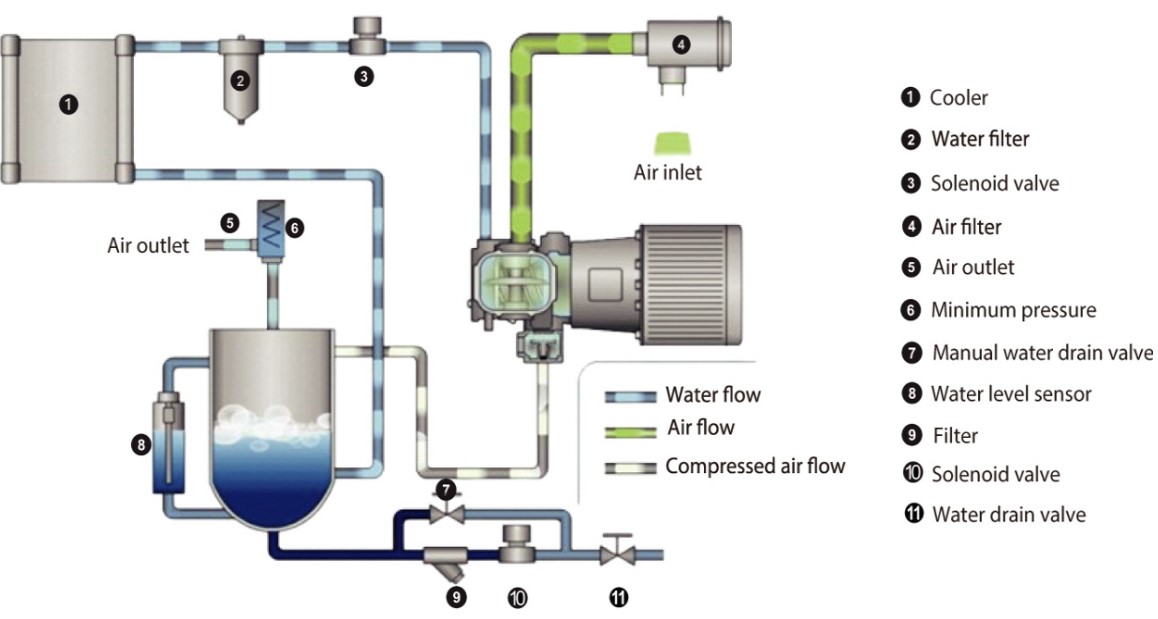

Workflow of the operation system
A streamlined system that secures high reliability
Water-injected oil free screw compressor (VSD)
Features and advantages

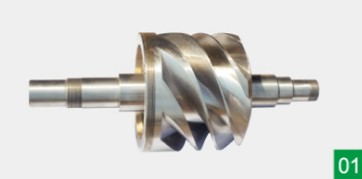

Water-injected screw
- PEEK (high intensity and ultrahigh abrasion resistance polymer) gate rotor
- Stainless steel screw rotors of an aerospace class

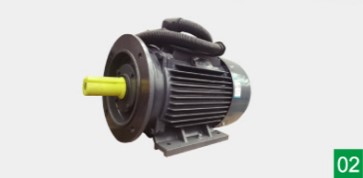

Premium efficiency drive motor
- Premium-efficiency, totally enclosed fan cooled (TEFC) IP54/IP55 (Class F) that is highly resistant to dust and chemicals
- Long-term stable operation even in harsh environments up to 55C(131F)
Excellent maintenance and service
- Minimal spare parts required: air filter and water filter elements
- Automatic water replacement with no operation suspension necessary

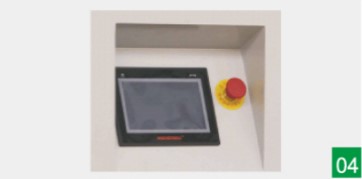

Control Module
- Closed loop control that features the ideal dynamic characteristics and control accuracy
- Precise torque control
- Regular maintenance and remote alarms at the exact time
- Remote operating number control
- Stable pressure control to prevent energy loss

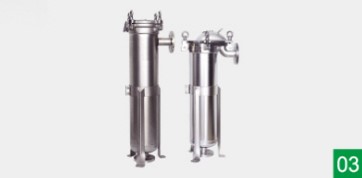

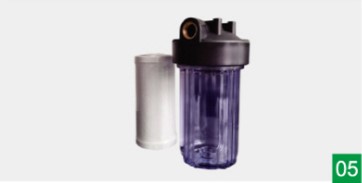

Super Clean Water System (optional)
- DENAIR Super Clean Water System consists of the imported water purifying filter and imported reverse osmosis system. This is a compressor lubricating water treatment system that features the stability and high quality.

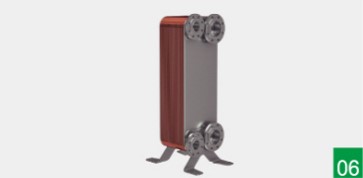

High-efficiency cooling system
- Saving of maintenance costs and repair time
- Water lubrication and cooling that secures the excellent heat transference performance and high cooling efficiency
- Reduction of oil pollution risks
Technical parameters
| Model | Capacity FAD* | Maximum Working Pressure | Motor Power | Air Supply Temperature | Cooling Water Capacity | Dimensions | Weight | Air Pipe Diameter | Noise Level** | |||
| ㎥/min | cfm | bar(g) | psig | kW | hp | ℃ | T/H | L*W*H(mm) | (kg) | Inch | dB(A) | |
| DVAWH-50W-25 | 5.0 | 177 | 25 | 363 | 20+30 | 30+40 | CWT+15 | 14 | 2420*1670*1610 | 1700 | DN25 | 75 |
| DVAWH-55W-30 | 30 | 435 | 22+33 | 30+50 | CWT+15 | 14 | 2420*1670*1610 | 1700 | DN25 | 75 | ||
| DVAWH-65W-40 | 40 | 580 | 30+35 | 40+50 | CWT+15 | 14 | 2420*1670*1610 | 1700 | DN25 | 75 | ||
| DVAWH-65W-25 | 6.0 | 212 | 25 | 363 | 30+35 | 40+50 | CWT+15 | 19 | 2420*1670*1610 | 2000 | DN32 | 77 |
| DVAWH-75W-30 | 30 | 435 | 30+45 | 40+60 | CWT+15 | 19 | 2420*1670*1610 | 2000 | DN25 | 77 | ||
| DVAWH-85W-40 | 40 | 580 | 30+55 | 40+75 | CWT+15 | 19 | 2420*1670*1610 | 2000 | DN25 | 77 | ||
| DVAWH-80W-25 | 8.0 | 283 | 25 | 363 | 35+45 | 50+60 | CWT+15 | 26 | 3200*2000*2050 | 2300 | DN32 | 78 |
| DVAWH-90W-35 | 30 | 435 | 35+55 | 50+75 | CWT+15 | 26 | 3200*2000*2050 | 2300 | DN32 | 78 | ||
| DVAWH-110W-40 | 40 | 580 | 35+75 | 50+100 | CWT+15 | 26 | 3200*2000*2050 | 2300 | DN32 | 78 | ||
| DVAWH-100W-25 | 10.0 | 354 | 25 | 363 | 45+55 | 60+75 | CWT+15 | 32 | 3220*2020*2070 | 2650 | DN32 | 80 |
| DVAWH-120W-30 | 30 | 435 | 45+75 | 60+100 | CWT+15 | 32 | 3220*2020*2070 | 2650 | DN32 | 80 | ||
| DVAWH-135W-40 | 40 | 580 | 45+90 | 60+120 | CWT+15 | 32 | 3220*2020*2070 | 2650 | DN32 | 80 | ||
| DVAWH-130W-25 | 12.0 | 424 | 25 | 363 | 55+75 | 75+100 | CWT+15 | 39 | 3220*2070*2300 | 3050 | DN32 | 81 |
| DVAWH-145W-30 | 30 | 435 | 55+90 | 75+120 | CWT+15 | 39 | 3220*2070*2300 | 3050 | DN32 | 81 | ||
| DVAWH-165W-40 | 40 | 580 | 55+110 | 75+150 | CWT+15 | 39 | 3220*2070*2300 | 3050 | DN32 | 81 | ||
| DVAWH-165W-25 | 16.0 | 566 | 25 | 363 | 55+110 | 75+150 | CWT+15 | 51 | 3220*2220*2320 | 3300 | DN50 | 82 |
| DVAWH-185W-30 | 30 | 435 | 75+110 | 100+150 | CWT+15 | 51 | 3220*2220*2320 | 3300 | DN50 | 82 | ||
| DVAWH-205W-40 | 40 | 580 | 75+130 | 100+175 | CWT+15 | 51 | 3220*2220*2320 | 3300 | DN50 | 82 | ||
| DVAWH-200W-25 | 20.0 | 708 | 25 | 363 | 90+110 | 120+150 | CWT+15 | 64 | 3620*2220*2320 | 3700 | DN50 | 83 |
| DVAWH-220W-30 | 30 | 435 | 90+130 | 120+175 | CWT+15 | 64 | 3600*2200*2300 | 3700 | DN50 | 83 | ||
| DVAWH-250W-40 | 40 | 580 | 90+160 | 120+215 | CWT+15 | 64 | 3600*2200*2300 | 3700 | DN50 | 83 | ||
| DVAWH-290W-25 | 30.0 | 1062 | 25 | 363 | 130+160 | 175+215 | CWT+15 | 96 | 4220*2070*2720 | 3920 | DN50 | 83 |
| DVAWH-315W-30 | 30 | 435 | 130+185 | 175+250 | CWT+15 | 96 | 4220*2070*2720 | 3920 | DN50 | 83 | ||
| DVAWH-330W-40 | 40 | 580 | 130+200 | 175+270 | CWT+15 | 96 | 4220*2070*2720 | 3920 | DN50 | 83 | ||
| DVAWH-405W-25 | 40.0 | 1414 | 25 | 363 | 185+220 | 250+300 | CWT+15 | 128 | 4210*2060*2710 | 4250 | DN65 | 85 |
| DVAWH-435W-30 | 30 | 435 | 185+250 | 250+350 | CWT+15 | 128 | 4210*2060*2710 | 4250 | DN65 | 85 | ||
| DVAWH-470W-40 | 40 | 580 | 185+285 | 250+385 | CWT+15 | 128 | 4210*2060*2710 | 4250 | DN65 | 85 | ||
*) The parameters above were tested in a standard working condition and are provided here only for reference.
Specifications may be changed with no prior notice.
INDUSTRY APPLICATIONS
DENAIR is committed to serving water injected oil free projects and service company which serves the market globally for more than 20year.
We provide a global network of sales depots with reliable solutions and 24/7 support. We are triple certified for Quality, Environmental, and Occupational, Health and Safety Management. This is what we call Sustainable Productivity.
P-DNR202407-25 Specifications are subject to change without prior notice. Never use compressed air as breathing air without prior purification in accordance with local legislation and standards.
